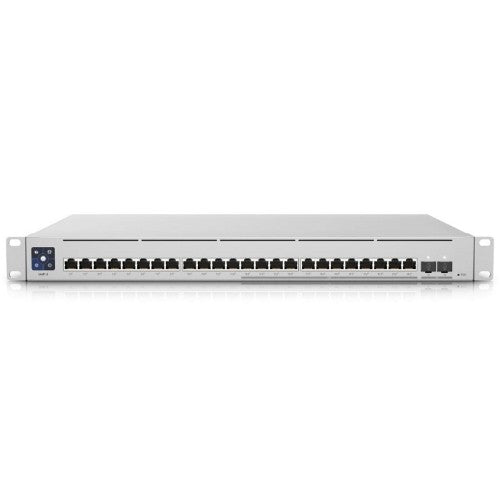

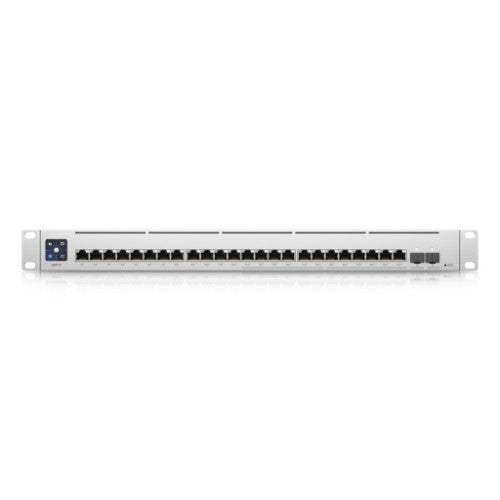

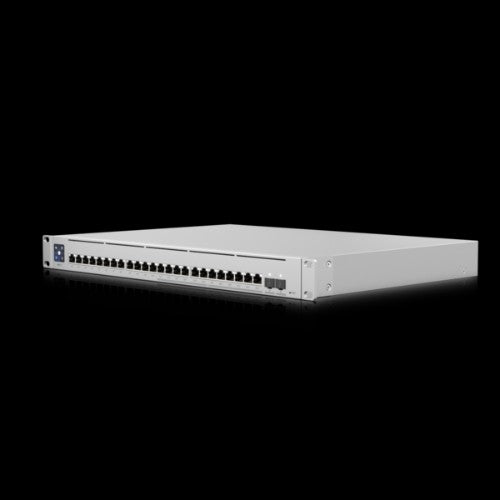

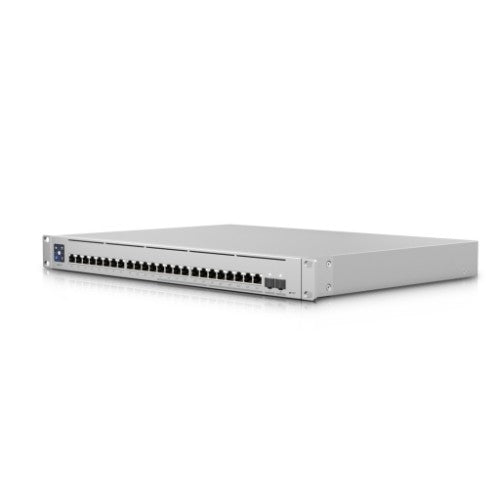

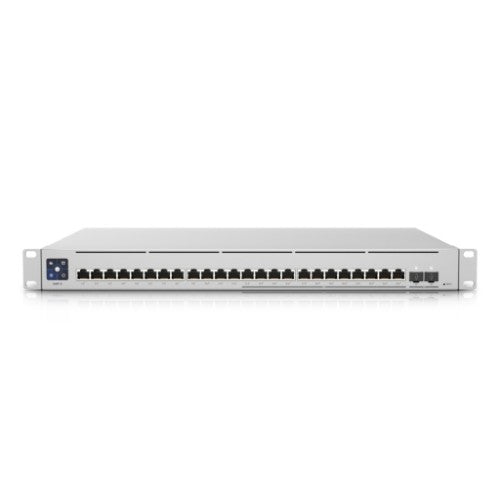

Ubiquiti USW-ENTERPRISE-24-POE network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver

SMB Layer 3, 124 Gbps, 24x RJ45, 2x SFP+, PoE+

Key Features

• (12) 2.5G 802.3af/at PoE+ RJ45 ports
• (12) 1G 802.3af/at PoE+ RJ45 ports
• (2) 10G SFP+ ports
• 400W total PoE capacity
• 1.3" touchscreen with AR switch management
• UniFi SmartPower RPS DC input

Description

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

Specifications

Management features
Switch layer	L3
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	2
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
10G support	Yes
Data transmission
Switching capacity	124 Gbit/s
Forwarding rate	92.25 Mpps
Throughput	62 Gbit/s
Design
Rack mounting	Yes
Product colour	Silver
LED indicators	Activity, Link, System
Housing material	Galvanized steel
Certification	CE, FCC, IC
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Power
Power consumption (max)	550 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	11.5 - 52 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	34.2 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	10 - 95 °C
Weight & dimensions
Width	442.4 mm
Depth	325 mm
Height	43.7 mm
Weight	5.11 kg
Packaging data
Rack mount kit	Yes
Logistics data
Harmonized System (HS) code	85176990
Other features
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Packaging content
Rack mount kit	Yes
