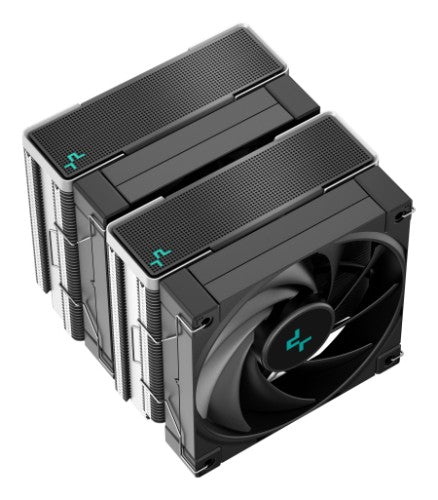

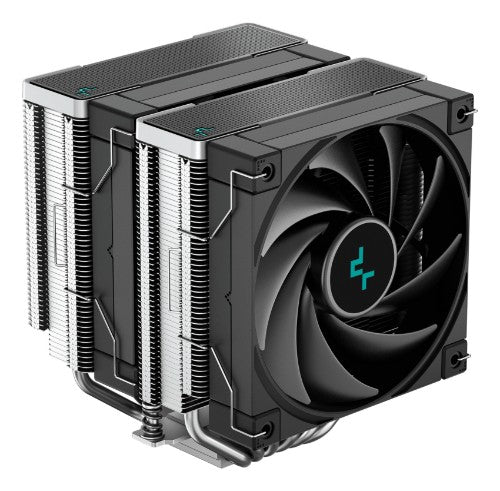

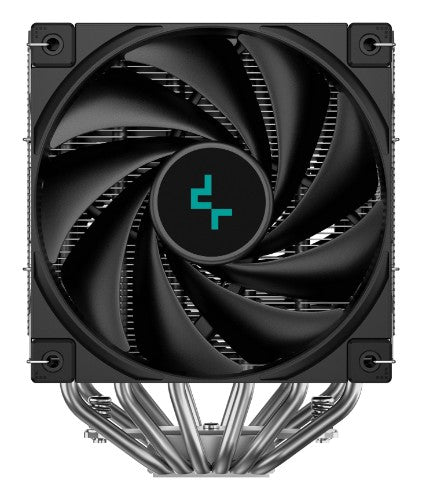

DeepCool AK620 Processor Air cooler 12 cm Black 1 pc(s)

Intel/AMD, 2x 120 mm, Ø6 mm x 6 pcs, 500 - 1850 RPM, FDB, 68.99 CFM, 28 dB, PWM, 12 VDC, Black

Description

Achieve dominant cooling and silent efficiency with the DeepCool AK620 High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.

AK620
High Performance Dual Tower CPU Cooler

UNLOCKED POTENTIALA
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET, AND POWERFUL

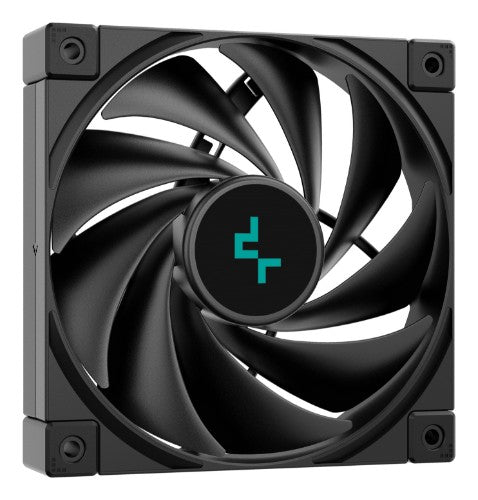

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

EXCEPTIONAL COOLING BY DESIGN

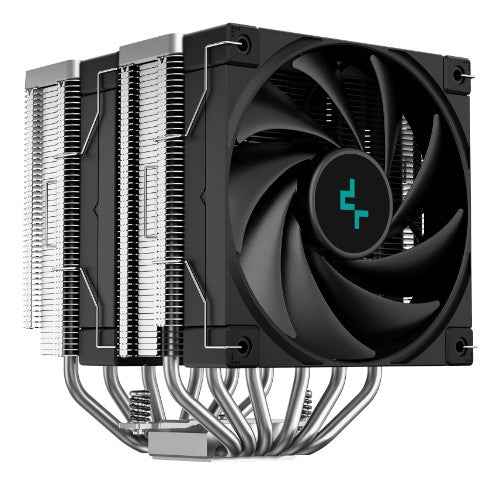

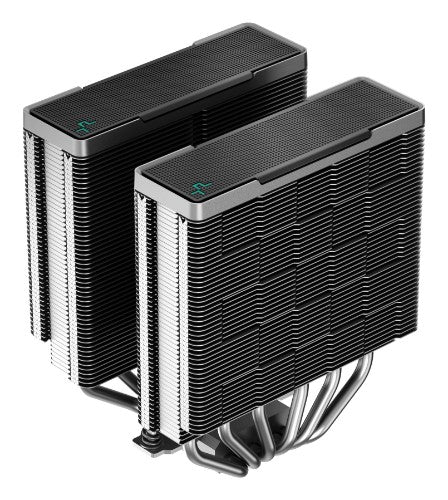

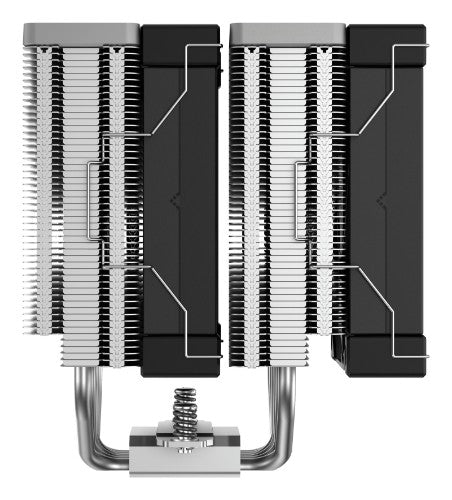

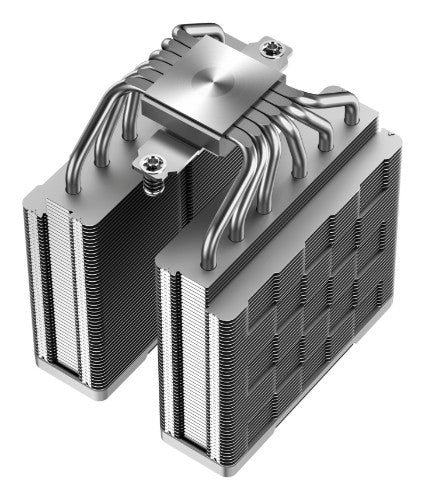

The AK620 features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

- 160mm Cooler height compatibility
- 43mm RAM height clearance*

(*59mm in single fan configurations)

MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Air cooler
Rotational speed (min)	500 RPM
Rotational speed (max)	1850 RPM
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Noise level (high speed)	28 dB
Maximum airflow	68.99 cfm
Maximum air pressure	2.19 mmH2O
Thermal Design Power (TDP)	260 W
Number of heat pipes	6
Number of fans	2 fan(s)
Heat pipes diameter	6 mm
Quantity per pack	1 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Fan speed (min)	500 RPM
Fan speed (max)	1850 RPM
Design
Fan connector	4-pin
Number of heat pipes	6
Number of fans	2 fan(s)
Product colour	Black
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	260 W
Fan power consumption	1.44 W
Fan voltage	12 V
Fan current	0.12 A
Weight & dimensions
Width	129 mm
Depth	138 mm
Height	160 mm
Weight	1.46 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm
Radiator width	12.7 cm
Radiator depth	11 cm
Radiator height	15.7 cm
Technical details
Fan connector	4-pin
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Cables included	Fan
Thermal pad included	Yes
Package type	Box
Mounting kit	Yes
Installation instruction	Yes
CPU bracket(s)	Yes
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
