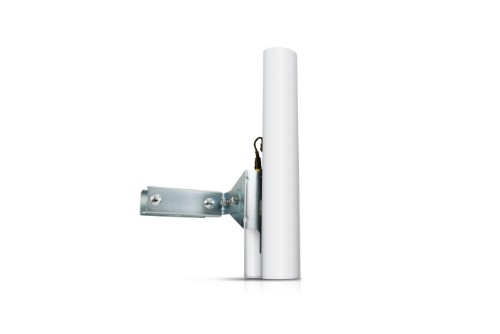

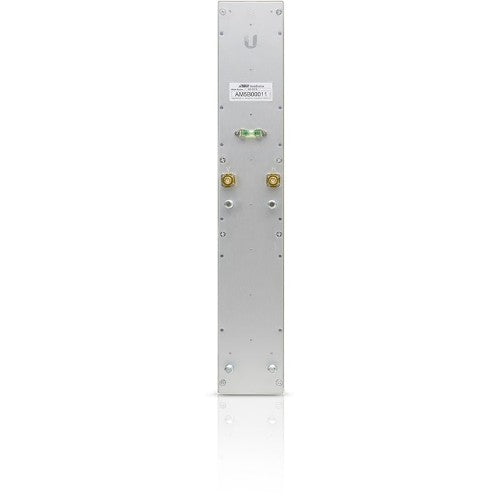

Ubiquiti AM-5G17-90 network antenna Sector antenna 17.1 dBi

2x2 MIMO BaseStation Sector Antenna, 5 GHz, 17 dBi

Description

Sector Coverage
The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.

Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS
Priority is given to voice/video for seamless streaming.

Scalability
High capacity and scalability.

Long Distance
Capable of high-speed, carrier-class links

Specifications

Performance
Antenna gain level (max)	17.1 dBi
Frequency band	5 GHz
Vertical beam width (5 GHz)	4°
Vertical beam width	93°
Horizontal beam width (5 GHz)	8°
Horizontal beam width	72°
Features
Antenna gain level (max)	17.1 dBi
Frequency band	5 GHz
Antenna type	Sector antenna
Voltage Standing Wave Ratio (VSWR)	1.5:1
Vertical beam width (5 GHz)	4°
Vertical beam width	93°
Purpose	Outdoor
Polarization	Dual polarization
Mounting	Wall
Horizontal beam width (5 GHz)	8°
Horizontal beam width	72°
Product colour	White
Certification	EN 302 326 DN2
Technical details
Harmonized System (HS) code	85177100
Weight & dimensions
Weight	1.1 kg
Width	367 mm
Depth	63 mm
Height	41 mm
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
