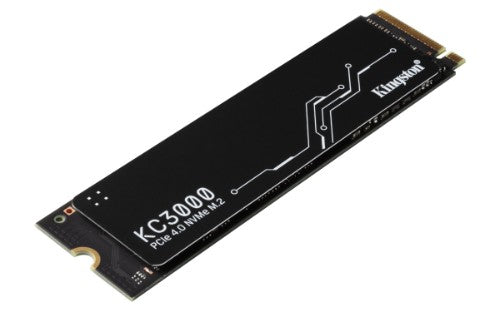

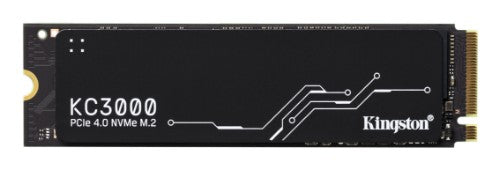

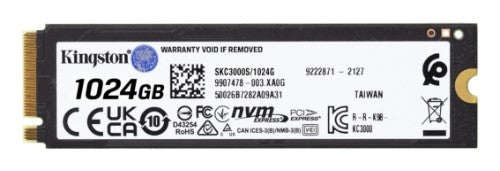

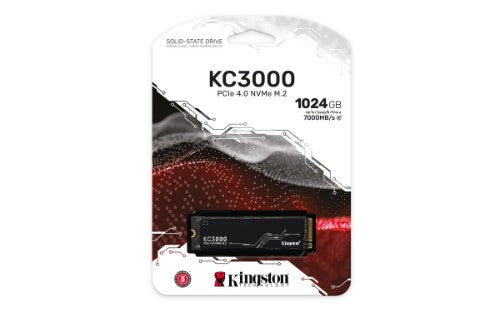

Kingston Technology 1024G KC3000 M.2 2280 NVMe SSD

1024G KC3000 M.2 2280 NVMe SSD

Key Features

• PCIe 4.0 NVMe high-performance
• Upgrade with full capacities up to 4096GB**
• Compact M.2 2280 form factor
• Low profile graphene aluminium heat spreader

Description

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.

The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.

Full capacities available from 512GB–4096GB** to meet your data storage requirements.

PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.

Store more
Upgrade and manage storage with full capacities of up to 4096GB**.

Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.

Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.

Specifications

Features
Interface	PCI Express 4.0
Component for	PC/Laptop
Controller type	Phison E18
SSD capacity	1 TB
Read speed	7000 MB/s
Write speed	6000 MB/s
NVMe	Yes
Memory type	3D TLC
Random read (4KB)	900000 IOPS
Random write (4KB)	1000000 IOPS
Mean time between failures (MTBF)	1800000 h
TBW rating	800
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Harmonized System (HS) code	84717070
Power
Power consumption (average)	0.33 W
Power consumption (write)	6.3 W
Power consumption (read)	2.8 W
Power consumption (idle)	0.005 W
Performance
Interface	PCI Express 4.0
Component for	PC/Laptop
Controller type	Phison E18
SSD capacity	1 TB
Read speed	7000 MB/s
Write speed	6000 MB/s
NVMe	Yes
Memory type	3D TLC
Random read (4KB)	900000 IOPS
Random write (4KB)	1000000 IOPS
Mean time between failures (MTBF)	1800000 h
TBW rating	800
Design
Cooling type	Heatsink
SSD form factor	M.2
Weight & dimensions
Width	80 mm
Depth	22 mm
Height	2.21 mm
Weight	7 g
Package width	129.5 mm
Package depth	8.38 mm
Package height	184.2 mm
Package weight	31.33 g
Packaging data
Package width	129.5 mm
Package depth	8.38 mm
Package height	184.2 mm
Package weight	31.33 g
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	391.29 g
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
SSD form factor	M.2
Harmonized System (HS) code	84717070
Other features
Cooling type	Heatsink
Country of origin	China, Taiwan
Logistics data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	391.29 g
Products per master (outer) case	10 pc(s)
Country of origin	China, Taiwan
Harmonized System (HS) code	84717070
