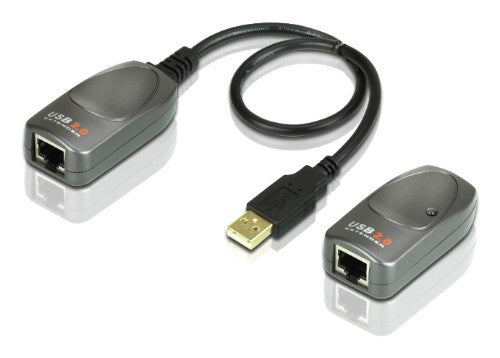

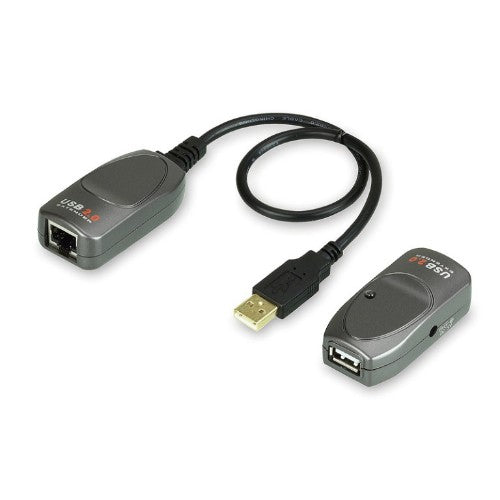

ATEN UCE260-AT-U console extender Console transmitter & receiver 480 Mbit/s

USB 2.0 Over Cat5e/6 Extender (60m)

Key Features

• Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
• Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
• Includes an AC adapter to stabilize power supply
• Hot-Pluggable
• The most cost-effective USB extender solution
• No additional software driver required

Description

UCE260 can easily send the USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.
1x UCE260 USB 2.0 Extender (1x Local Unit with USB Cable, 1x Remote Unit)
1x 0AD8-1705-26M1 Power Adapter
1x User Instructions

Specifications

Technical details
Type	Console transmitter & receiver
Housing material	Plastic
Data transfer rate	480 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Maximum transfer distance	60 m
Product colour	Grey
Plug and Play	Yes
Certification	CE, FCC
Ports & interfaces
RJ-45 ports quantity	2
DC-in jack	Yes
USB 2.0 Type-A ports quantity	2
Weight & dimensions
Width	31 mm
Depth	63 mm
Height	21.9 mm
Weight	170 g
Transmitter weight	40 g
Receiver weight	20 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Colour
Product colour	Grey
Packaging content
AC adapter included	Yes
Manual	Yes
Power
Power source type	DC, USB
