ATEN

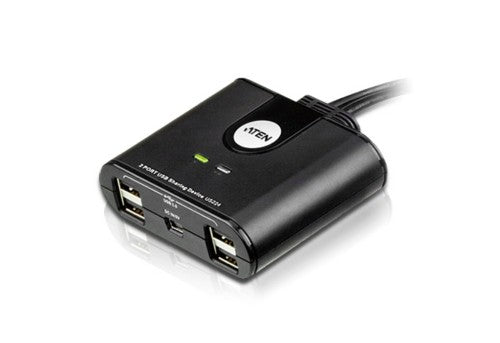

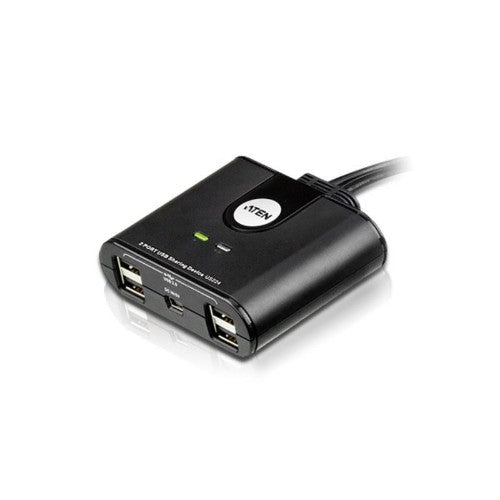

ATEN 2-Port USB 2.0 Peripheral Sharing Device
Regular price
$37.33 AUD
Regular price
Sale price
$37.33 AUD
Unit price
per
Use the contact form below to check availability.
2-Port USB 2.0 Peripheral Sharing Device
1x US224 2 x 4 USB 2.0 Peripheral Sharing Switch
Key Features
- 4 built in USB ports – all-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 2 computers to share 4 USB devices – a USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- USB 2.0 compliant
- Multiplatform support – Windows, Linux ,Mac and Sun
- LED indicators display port focus
- Overcurrent protection
- Non-powered (supports optional USB power adapter)
- Hot pluggable
Description
The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installation – no need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.1x US224 2 x 4 USB 2.0 Peripheral Sharing Switch
Specifications
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 4 |
| Cable length | 1.8 m |
| Performance | |
| HD type | Not supported |
| Cable length | 1.8 m |
| Design | |
| Product colour | Black |
| Cable length | 1.8 m |
| Rack mounting | No |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| USB powered | Yes |
| Video | |
| HD type | Not supported |
| Technical details | |
| USB hub | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 142 g |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 221 g |
| Packaging data | |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 221 g |
| Logistics data | |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 4.89 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case net weight | 2.84 kg |
| Harmonized System (HS) code | 85176200 |
