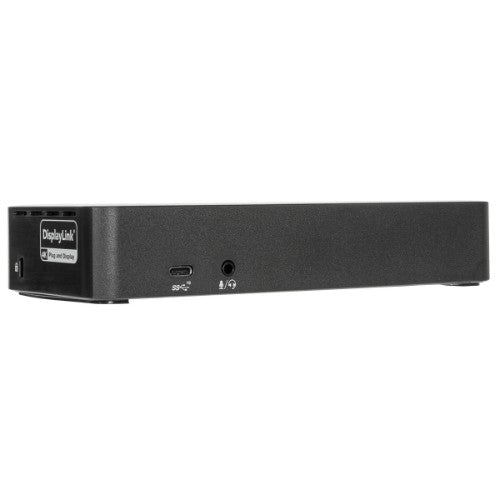

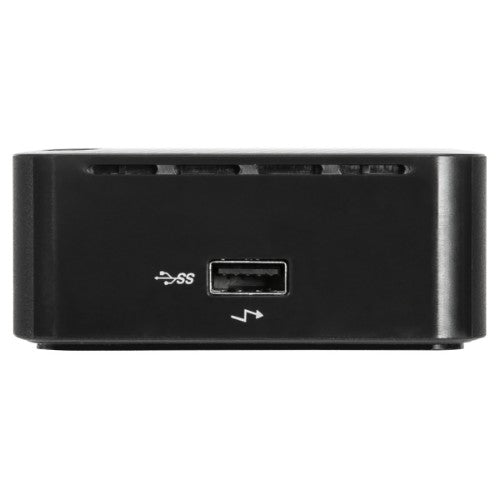

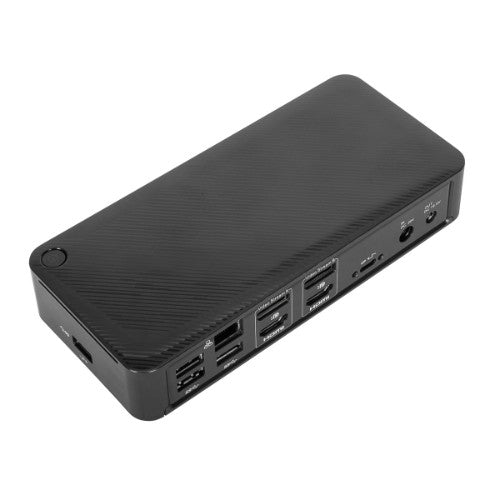

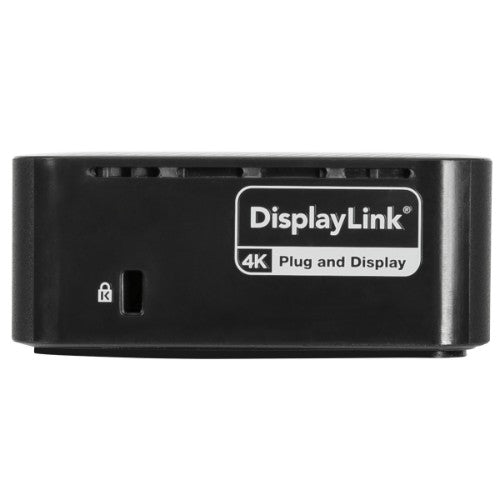

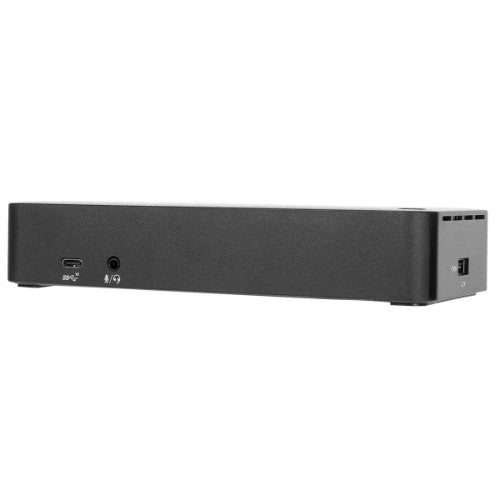

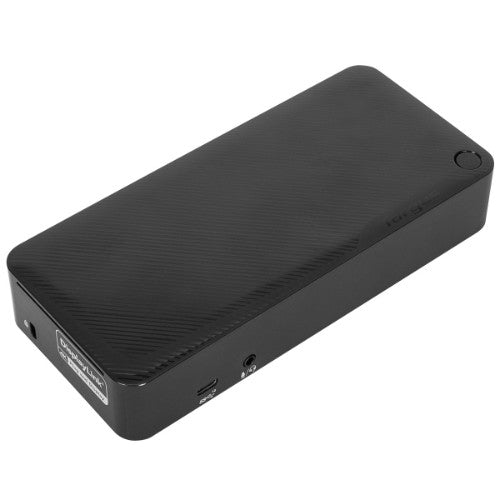

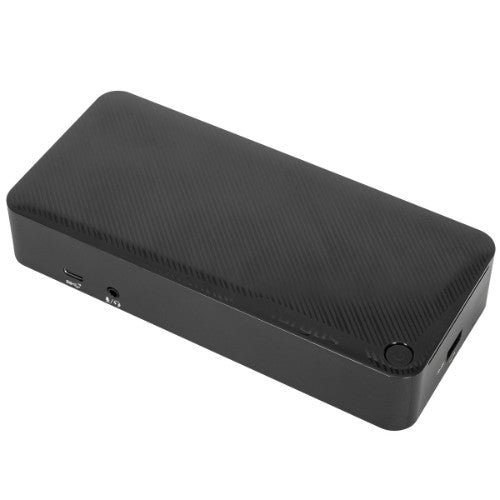

Targus DOCK182AUZ laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

4K UHD @ 60 Hz, USB Type-C, USB, Ethernet, 3.5 mm, DisplayPort

Key Features

• Supports single and dual 4K UHD @ 60 Hz video via two DisplayPort™ 1.2a ports or HDMI 2.0 ports
• Power Delivery 3.0 up to 100W for USB-C hosts
• 1 USB 3.2 Gen 2 Type-C (10 Gbps) port
• 4 USB 3.2 Gen 1 Type-A ports (1 fast charging)
• 1 Gigabit Ethernet port
• 1 3.5mm combo Audio In/Out port
• Integrated lock slot accommodates standard security locks to safeguard equipment
• 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter
• Compatible with Targus VESA® Mounting Bracket (ACX003GLZ, sold separately)

Description

Expand your workstation and connect to virtually any laptop with the Universal USB-C® DV4K Docking Station with 100W Power. Designed to support and power a wide variety of USB-C laptops and operating systems, including Windows®, macOS®, Android™, ChromeOS™, and Ubuntu®, this patented dock packs all of the ports and power you need.

Enjoy sharp 4K video while supporting a connection up to two monitors with its two HDMI and two DisplayPort™ connections. Plus connect all your favorite accessories – like a mouse, keyboard, hard drive, and more – with a combination of USB-A (4x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 2 Type-C), plus Ethernet and audio ports.

Designed for the modern workstation, the dock comes equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Supports Dual DisplayPort™ and HDMI Monitors
The USB-C® Universal DV4K Docking Station with 100W Power is Thunderbolt™ 3 compatible, but that’s only the beginning. Enjoy two DisplayPort™ or two HDMI ports (or a mix of the two) with your dual display and create a picture-perfect image at 4K Ultra HD. Compare photos, documents, spreadsheets for work, or browse email with ease from screen to screen. Enjoy unbeatable compatibility all in one place using a single docking station with power.

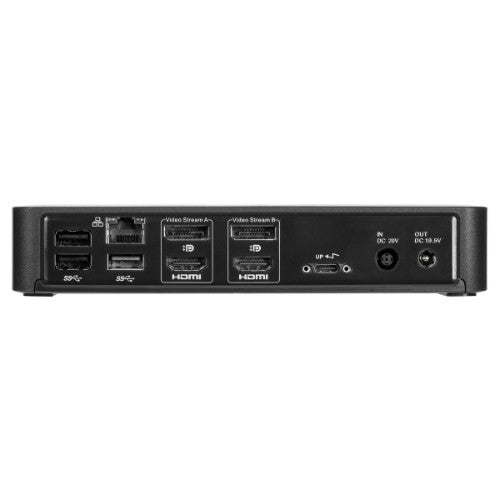

All About the Ports
With one USB 3.2 Gen 2 Type-C port and four USB 3.2 Gen 1 Type-A ports, it’s simple to connect the latest keyboards, exterior drives, and other peripherals to customize your workspace experience. The dock also includes a fast-charging port for charging your smartphone, tablet, or other devices.

Innovative Design
Compact and sleek, this patented dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	1.4b
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.2a
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Country of origin	Thailand
Card reader integrated	No
Cable lock slot	Yes
Certification	CE, FCC, RoHS
Cable lock slot type	Kensington
HD type	4K Ultra HD
VESA mounting	Yes
Maximum refresh rate	60 Hz
Storage
Card reader integrated	No
Power
Power source type	DC
Output voltage	19 V
Output current	7.89 A
Power supply	150 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android
Weight & dimensions
Width	82.6 mm
Depth	31.8 mm
Height	179.3 mm
Weight	340 g
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Country of origin	Thailand
Cable lock slot	Yes
Certification	CE, FCC, RoHS
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Cables included	AC, USB Type-A to USB Type-C
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
