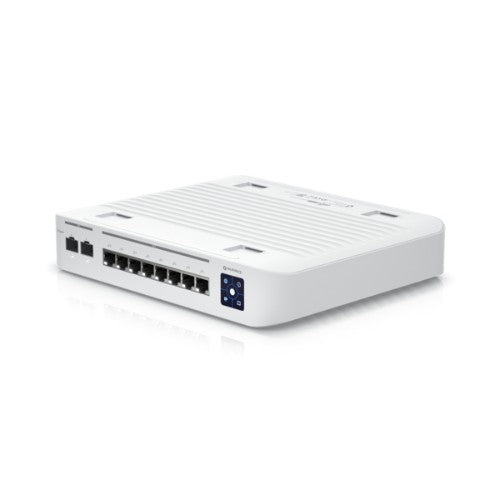

Ubiquiti UniFi Enterprise 8 PoE Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Stainless steel

Fully managed, L3, 8x 2.5GbE RJ-45 ports, 2x 10G SFP+ ports, 80 Gbps switching capacity, PoE, UniFi Network

Key Features

• (1) 1.3" LCM color touchscreen with AR switch management
• (8) 2.5GbE, 802.3at PoE+ RJ45 ports
• (2) 10G SFP+ ports
• 120W total PoE supply
• Wall-mountable (kit included)

Description

Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Data transmission
Switching capacity	80 Gbit/s
Forwarding rate	59.52 Mpps
Throughput	40 Gbit/s
Design

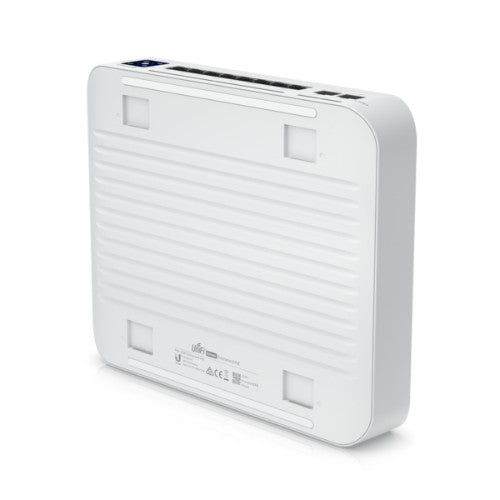

Wall mountable	Yes
Rack mounting	Yes
Product colour	Stainless steel
LED indicators	Activity, Link
Housing material	Polycarbonate (PC)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	32 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	248 mm
Depth	200 mm
Height	44 mm
Weight	2.4 kg
Packaging content
Manual	Yes
Performance
Harmonized System (HS) code	85176990
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	CE
Certificates
Compliance certificates	CE
Packaging data
Manual	Yes
Logistics data
Harmonized System (HS) code	85176990
