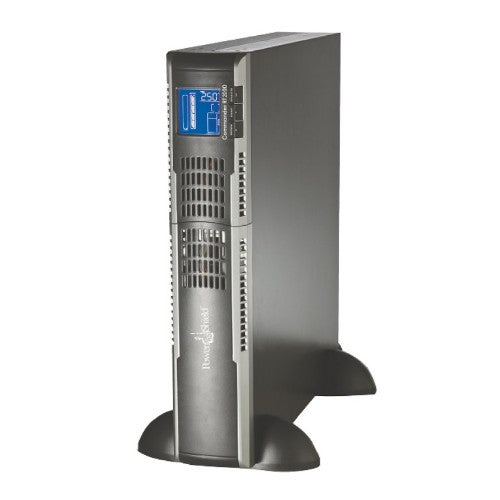

PowerShield Commander RT 2000VA uninterruptible power supply (UPS) Line-Interactive 2 kVA 1800 W 8 AC outlet(s)

2000 VA, 1800 W, 8 Outlets, 4 Batteries, 12 V, 9 AH, 480 × 438 × 88 mm, 22000 g

Key Features

• Pure sine wave output
• Rack/Tower design
• Built-in boost and buck AVR
• Output power factor 0.9
• Programmable power management outlets
• ECO mode operation for energy saving (ECO)
• Emergency Power Off Function (EPO)
• Hot-swappable battery design
• Long-run models available
• Multiple communication available

Description

With pure sine wave output, the Commander Rackmount Tower guarantees compatibility for all kinds of loads. It’s perfect power protection for versatile applications such as networking, telecom and other mission-critical applications.
The ECO mode function allows cost-effective operation of UPS Systems as high as 98%. In this operation mode, load is supplied by the mains. In the event of a mains failure, the inverter takes over the load and provides supply continuity to the connected systems.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	2 kVA
Output power	1800 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Surge energy rating	1560 J
Efficiency	89%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	10%
Crest factor	3:1
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	2 kVA
Response time	6 ms
Output power	1800 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Surge energy rating	1560 J
Efficiency	89%
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Overcharge, Overload, Short circuit
Power factor	0.9
Output voltage regulation	10%
Crest factor	3:1
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Power source type	AC

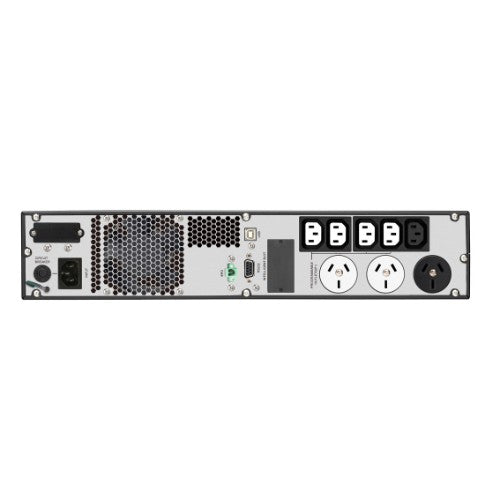

Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	4
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2011 / 65 / EU
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	438 mm
Depth	480 mm
Height	88 mm
Weight	22 kg
Certificates
Certification	EN62040 - 1 - 1 2003, IEC60950 - 1 - 1, EN62040 - 2 2006, Directive 2011 / 65 / EU
