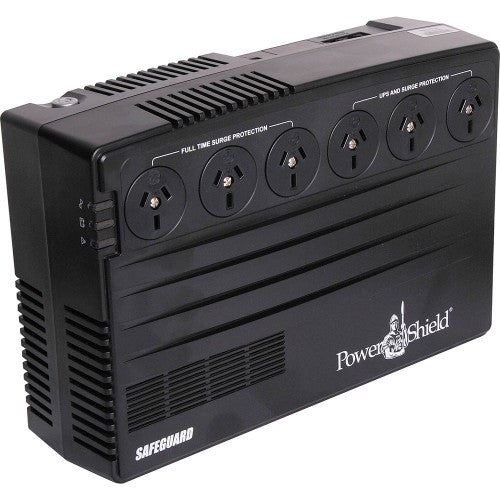

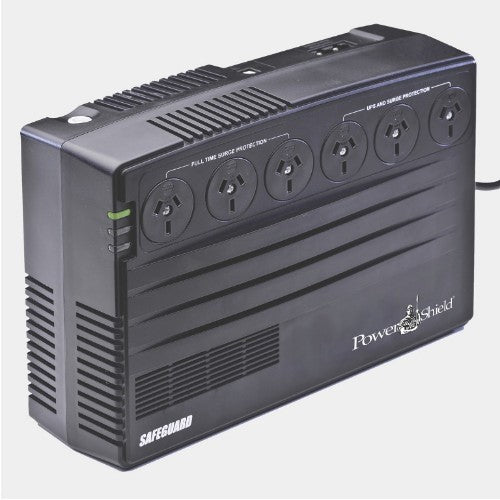

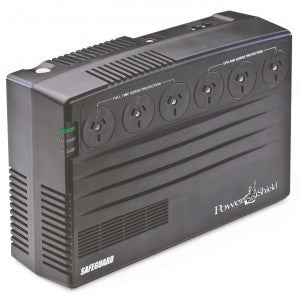

PowerShield PSG750 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 450 W

750VA, 450W

Key Features

• Automatic Voltage Regulation (Buck and Boost)
• Light-weight compact and elegantly designed
• Intelligent microprocessor control
• Monitoring and shutdown software included
• Fax/modem/LAN surge suppression port
• Overload protection and alarm
• Output short circuit protection
• Start on battery function (cold start)
• USB communication
• Easy user replacable battery
• Australian/New Zealand approved sockets
• Wall mountable
• Fast charging – 90% in 4 hours

Description

PowerShield SAFEGUARD

The SafeGuard UPS provides a buffer between your equipment and inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	0.75 kVA
Output power	450 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Output operation voltage (min)	240 V
Output operation voltage (max)	240 V
Output voltage regulation	10%
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Response time	6 ms
LED indicators	Yes
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Response time	6 ms
Output power	450 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Output operation voltage (min)	240 V
Output operation voltage (max)	240 V
Output voltage regulation	10%
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Design
Product colour	Black
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	91 mm
Depth	292 mm
Height	199 mm
Weight	6.5 kg
