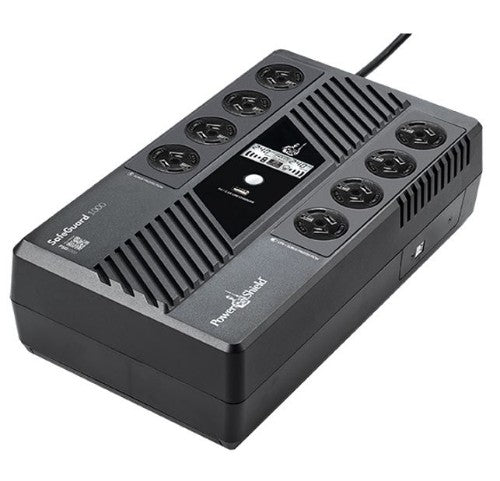

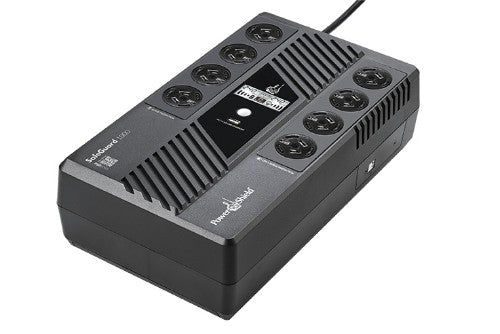

PowerShield SafeGuard 1000 uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 8 AC outlet(s)

Line Interactive, 1000VA, 600W, 8 Outlets, USB

Key Features

• Automatic Voltage Regulation (Buck and Boost)
• Informative Screen Display
• USB Charging Port
• Light-weight compact and elegantly designed
• Intelligent microprocessor control
• Monitoring and shutdown software included
• Overload protection and alarm
• Output short circuit protection
• Start on battery function (cold start)
• USB communication
• Easy user-replaceable battery
• Australian/New Zealand approved sockets
• Wall mountable

Description

The SafeGuard UPS 1000 provides a buffer between your equipment and inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment. The informative display and USB charging port are unique to this model and offer a complete solution for protecting valuable equipment.

Specifications

Power
Output power capacity	1 kVA
Output power	600 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	475 J
Power factor	0.6
Output voltage regulation	10%
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	6 ms
Waveform	Pseudo sine
Noise level	40 dB
LED indicators	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	600 W
Input operation voltage (min)	177 V
Input operation voltage (max)	290 V
Surge energy rating	475 J
Waveform	Pseudo sine
Power factor	0.6
Output voltage regulation	10%
Noise level	40 dB
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
Battery
Number of batteries supported	1
Design
Form factor	Tower
Product colour	Black
Safety	EN62040- 1:2008+A1:2013
Certification	EN62040-2:2018
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 2000 m
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Weight & dimensions
Width	345 mm
Depth	200 mm
Height	100 mm
Weight	6.1 kg
Certificates
Safety	EN62040- 1:2008+A1:2013
Certification	EN62040-2:2018
