Brateck Counterbalance Monitor Arm 81.3 cm (32") Graphite Desk

17" - 32", 2 - 9 kg, 995 x 107 x 572 mm, Space Grey

Key Features

• Spring-Assisted Mechanism: allows to easily move up and down

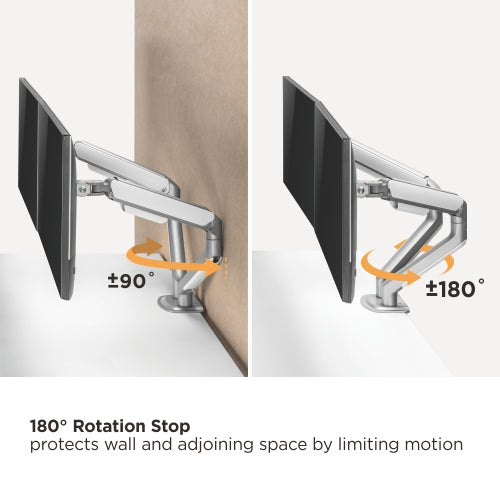

• Integrated 180° Rotation Stop: prevents monitor arm from swinging into screens or walls
• Two Mounting Options: both desk clamp and grommet are included
• Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
• Ease of Use: self-adjusting counterbalance for most any monitors

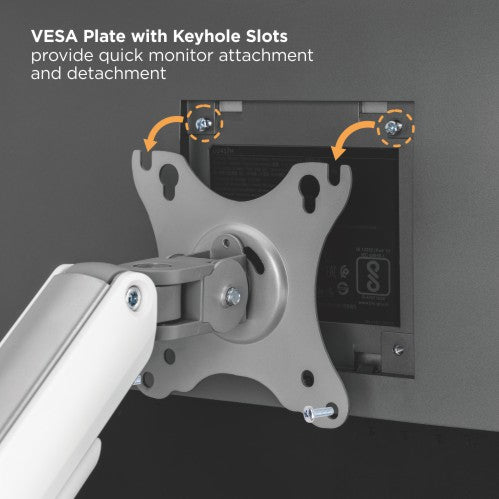

• Keyhole Pattern: allows for easy installation

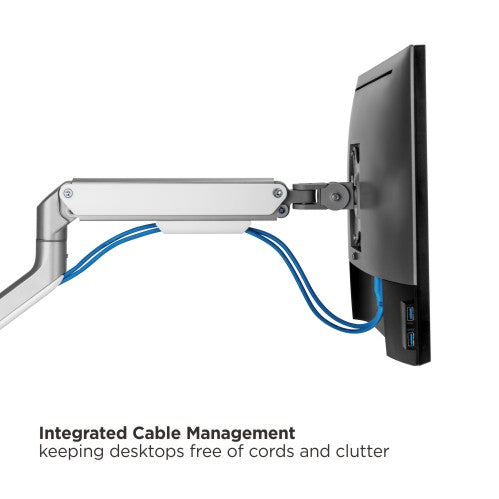

• Built-in Cable Management: for an organized and neat workspace

Description

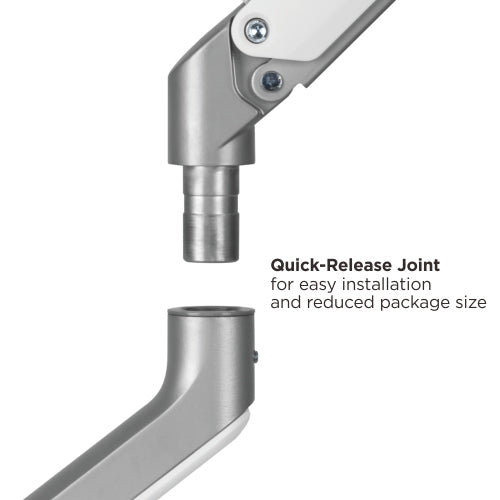

The LDT63-C024 Dual Monitor Arm Mount is an economical choice for adding flexibility and ergonomics to the work place. Durable steel and aluminum construction enables each arm to hold most 17”-32” monitors up to 9kg/19.8lbs (per arm). Finger-tip adjustment allows for effortless maneuvering and a wide range of motion to position screen height and angle. Integrated 180° rotation stop prevents the arm from hitting adjacent partitions and walls. A quick-release joint design reduces package size for lower shipping and storage costs while contributing to easy user assembly. The slim and modern design in 2 colors fits most any office or home décor.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8 cm
Minimum screen size	43.2 cm (17")
Maximum screen size	81.3 cm (32")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Bolt-through
Extension arm (max)	51.5 cm
Ergonomics
Cable management	Yes
Height adjustment	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-55 - 55°
Angle of rotation	180°
Height adjustment type	Gas spring
Tilt adjustment	Yes
Design
Product colour	Graphite
Housing material	Aluminium, Plastic, Steel
Orientation	Landscape/Portrait
Technical details
Cable management	Yes
Weight & dimensions
Width	995 mm
Depth	107 mm
Height	572 mm
Package type	Box
Packaging data
Package type	Box
Quantity per pack	1 pc(s)
Other features
Mounting type	Desk
Mounting	Clamp/Bolt-through
