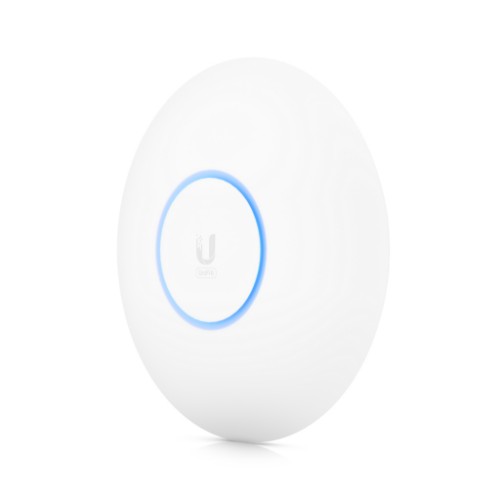

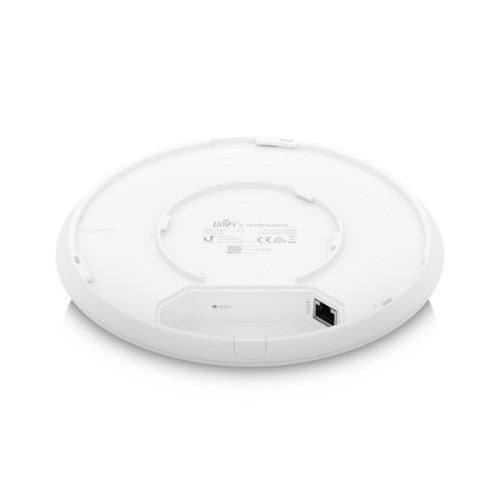

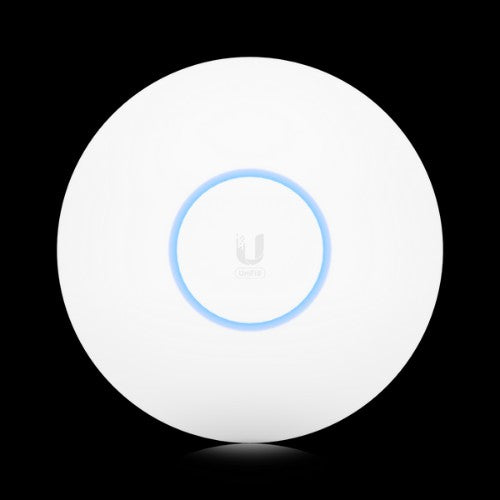

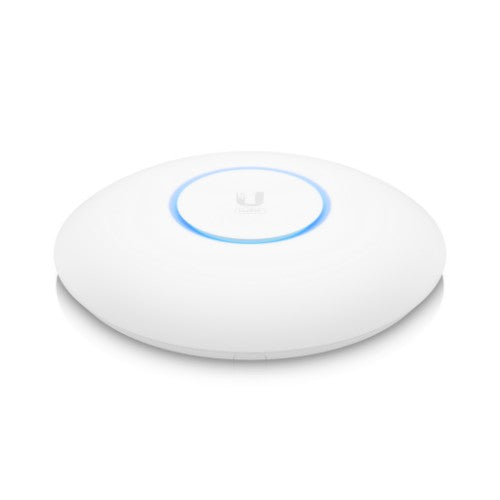

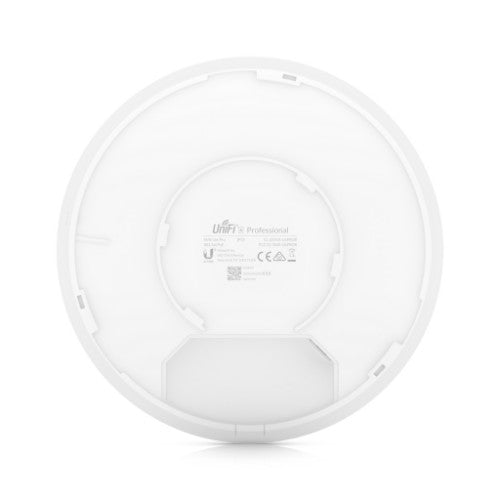

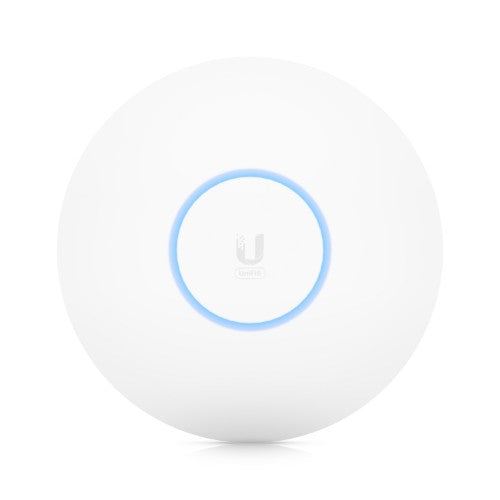

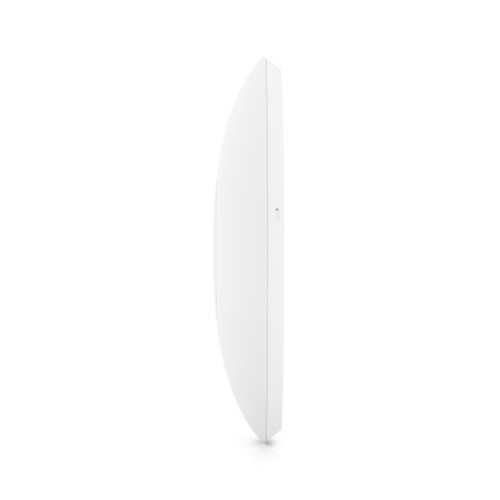

Ubiquiti U6-PRO wireless access point 4800 Mbit/s White Power over Ethernet (PoE)

2.4/5Ghz, 4.8 Gbit/s, PoE, 13W, IP54

Key Features

• Dual-band WiFi 6 (802.11ax)
• 5 GHz (4x4 MU-MIMO) band with a 4.8 Gbps throughput rate
• 2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
• Operates at full 4x4 MIMO with 160 MHz bandwidth
• 300+ concurrent client capacity
• Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion

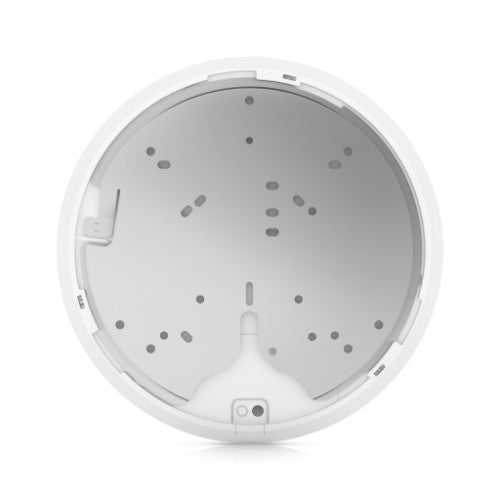

• Included universal mounting plate, backing plate, and screw kit

Description

Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	4800 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Certification	CE, FCC, IC
MIMO type	Multi User MIMO
MIMO	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	4800 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Bluetooth	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Throughput data rate	5300 Mbit/s
Security
Security algorithms	WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	13 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
International Protection (IP) code	IP54
Housing material	Plastic
Reset button	Yes
Product colour	White
Certification	CE, FCC, IC
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Weight & dimensions
Width	197 mm
Depth	197 mm
Height	35 mm
Weight	460 g
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Logistics data
Harmonized System (HS) code	85176990
