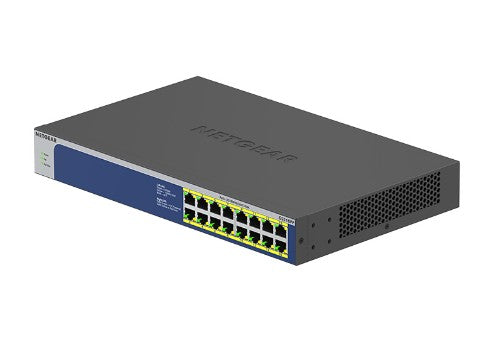

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue, Grey

Gigabit Ethernet, 10/100/1000Mbps, 802.3at PoE+ Ports x16, 32 Gbps, 2 fans, 192 KB, 8K

Description

Simple plug-and-play, with more than enough to power the entire network 16 high-power PoE+ ports with a large budget to keep your devices always-ready. PLUG-AND-PLAY: Simple set up with no software to install or configuration needed and zero maintenance FULL PERFORMANCE: Non-blocking switching architecture for maximum throughput at wire speed POWER-OVER-ETHERNET: 16 PoE+ ports with 260W total power budget to power wireless AP, IP Cameras, IP Phones and much more. POWER AUTO-BALANCE AND ALLOCATION NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs. SILENT OPERATION: The fanless design means zero added noise wherever its located, making it ideal for your home or business environment ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. RUGGED METAL CASING Durable desktop case for longevity VERSATILE MOUNTING OPTIONS: Supports desktop or rackmount placement, and includes all mounting hardware in the box STANDARDS-BASED DESIGN Ensure interoperability with any standards-based PDs

Specifications

Performance
Packet buffer memory	0.192 MB
Mean time between failures (MTBF)	2415333.9 h
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Data transmission
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Latency (1 Gbps)	12 µs
Jumbo frames support	Yes
Packet buffer memory	0.192 MB
Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Design
Rack mounting	Yes
Product colour	Blue, Grey
Form factor	1U
LED indicators	Activity, Fan fail, Link, PoE, Power, Speed
Housing material	Metal
Certification	FCC 47 CFR Part15B (Class A) ICES-003 Class A EN 55024/55032/55035 (Class A) AS/NZS CISPR 32 VCCI BSMI CNS13438 KCC UL 62368-1 CB_IEC 60950-1 + IEC 62368-1 Ed-3 LVD EN60950-1+EN62368-1 Ed-2 Rpt AS/NZS 62368.1 Ed-2 BSMI CNS14336-1
Number of fans	2 fan(s)
Power
Power consumption (max)	316.1 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	260 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	330 mm
Depth	207 mm
Height	43 mm
Weight	2.3 kg
