ATEN

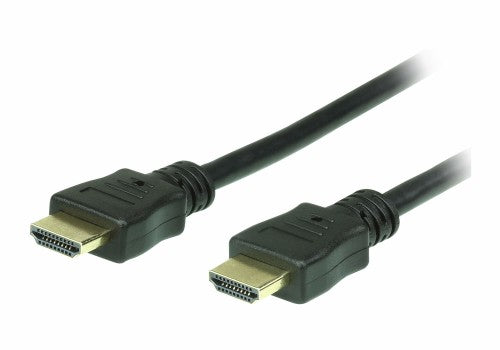

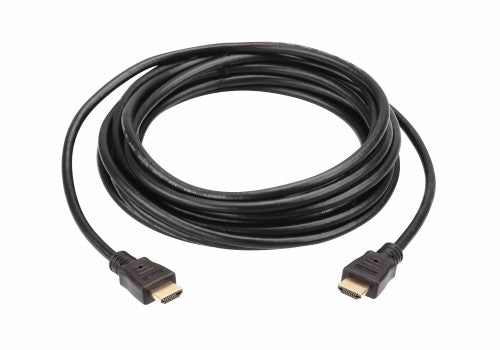

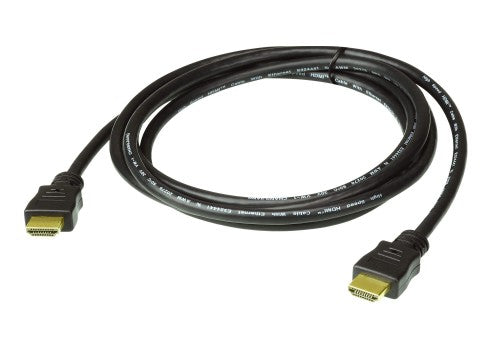

ATEN High Speed HDMI Cable with Ethernet 4K (4096 x 2160 @30Hz); 10 m HDMI Cable with Ethernet
Regular price
$40.00 AUD
Regular price
Sale price
$40.00 AUD
Unit price
per
Use the contact form below to check availability.
10 m High Speed HDMI Cable with Ethernet
Key Features
- Superior video quality:
- • up to 4K (4096 x 2160 @30Hz)
- HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Gold-plated connectors for reliable transmissions
- Available in lengths from 5 to 20 m
- RoHS compliant
- Bend Radius 90°**
- Note:
- * Feature only available if linked devices are HDMI Ethernet Channel enabled
- ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
Description
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable shielding | Aluminum mylar foil |
| HDMI Ethernet channel | Yes |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Product colour | Black |
| Cable material | Copper |
| Magnetically shielded | Yes |
| AWG wire size | 26 |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 1.4 |
| Certification | UL VW-1, CSA |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Certificates | |
| Certification | UL VW-1, CSA |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 750 g |
| Cable diameter | 8 mm |
| Package weight | 750 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 750 g |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Master (outer) case net weight | 9 kg |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case net weight | 9 kg |
| Harmonized System (HS) code | 84733080 |
