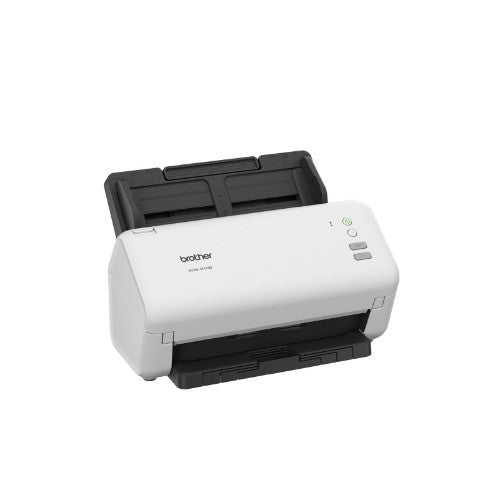

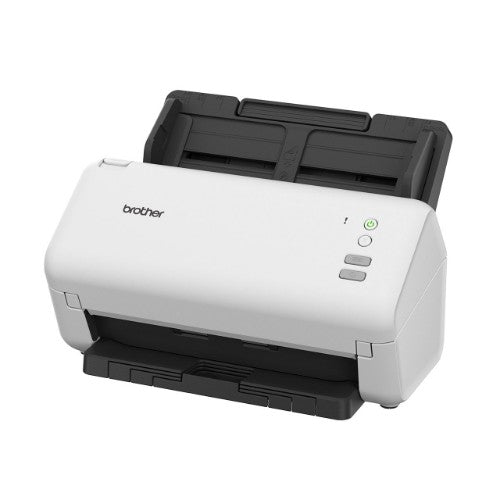

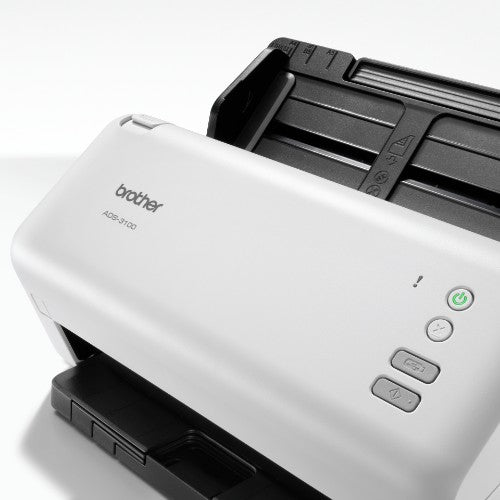

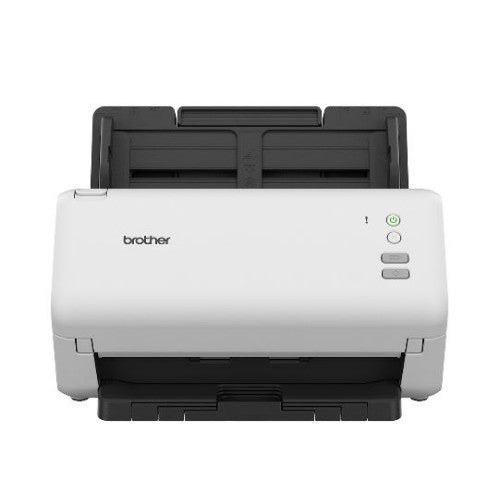

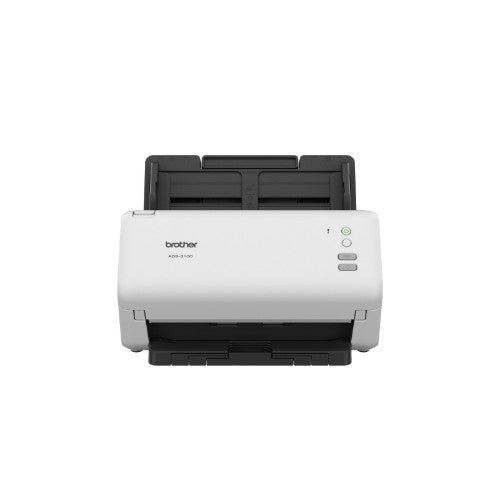

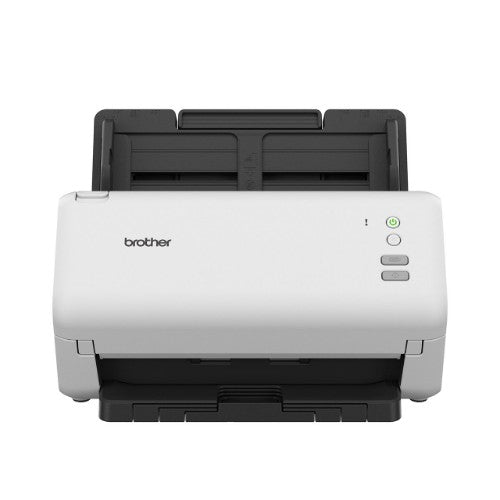

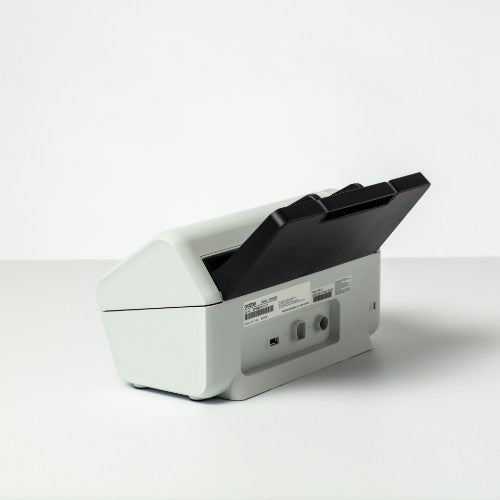

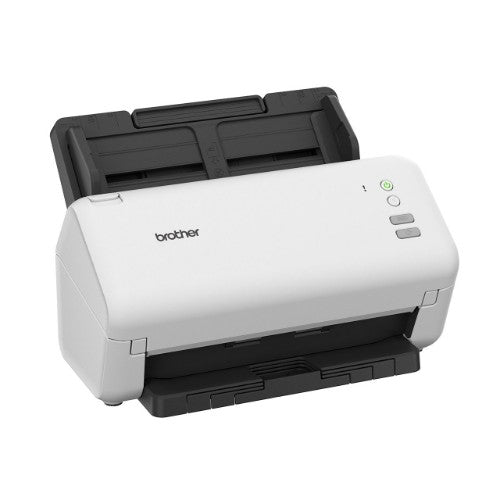

Brother ADS-3100 scanner 600 x 600 DPI A4 Black, White

Dual CIS, 355.6x215.9 mm, 1,200 dpi, 256 levels(8 bit), USB 3, 299x215x190 mm, 2.6kg

Key Features

• 2-sided scanning up to 80ipm
• Optical character recognition (OCR)
• Optimise workflows with Kofax, NewSoft and ScanEssentials Lite software
• Connect and scan using USB 3.0 and USB host

Description

High-Functionality and Compact Desktop Document Scanner The ADS-3100 desktop document scanner combines high-functionality with a simple, intuitive design in a compact and low-cost footprint - the perfect addition to your home or small office. Fast and reliable The ADS-3100 combines high-functionality with a simple, intuitive design in a compact, low-cost footprint. It has a large 60-sheet ADF and can scan 2-sided (duplex) up to 40ppm (80ipm) Advanced image capture and processing With Optical Character Recognition (OCR) to transform paper documents to actionable data, the ADS-3100 makes image capture and processing effortless Simple and intuitive A user-friendly interface, easy set up and installation means your scanner will be up and running in minutes so you can focus on business-critical tasks At your side support Wherever you are in Australia, Brother offers free product support for the lifetime of your product

Specifications

Scanning
Output greyscale depth	8 bit
Maximum scan size	355.6 x 215.9 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
ADF scan speed (colour, A4)	40 ppm
Duplex ADF scan speed (colour, A4)	80 ipm
Design
Built-in display	No
Product colour	Black, White
Control type	Buttons
Performance
Sensor type	Dual CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	6000 pages
Internal memory	512 MB
Input capacity
Auto document feeder (ADF) input capacity	60 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	5 m
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Media thickness (min)	0.08 mm
Long-paper mode	Yes
Card thickness (max)	1.32 mm
Paper tray media weight	40 - 200 g/m²
Ports & interfaces
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Power
Power supply type	AC
Power consumption (typical)	23 W
Power consumption (standby)	5.4 W
Power consumption (off)	0.1 W
Input voltage	100-240 V
Power consumption (sleep)	1.4 W
AC input frequency	50 - 60 Hz
Technical details
Maximum scan width	21.6 cm
Packaging data
Package width	391 mm
Package depth	215 mm
Package height	320 mm
Package weight	3.31 kg
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	299 mm
Depth	215 mm
Height	190 mm
Weight	2.6 kg
Package width	391 mm
Package depth	215 mm
Package height	320 mm
Package weight	3.31 kg
