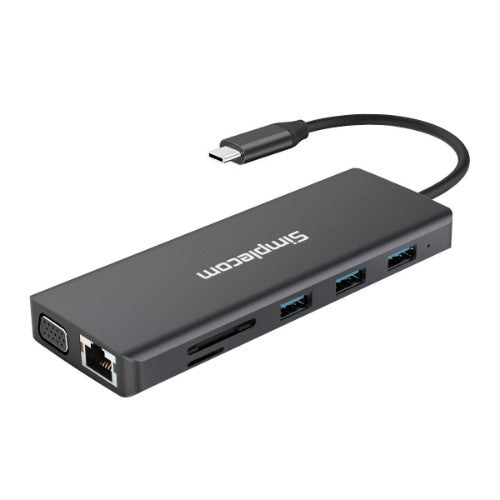

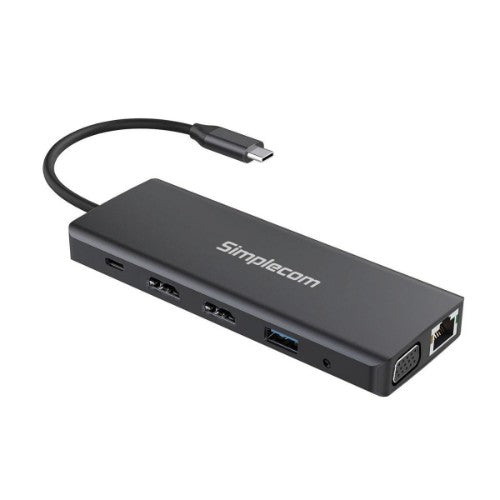

Simplecom CHN612 notebook dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

USB-C, 12-in-1, VGA, LAN, SD, MicroSD, 4xUSB-A, 3.5 Audio, 2xHDMI, USB-C Power Delivery (100W), 120x55x16 mm, 100 g

Key Features

• Powerful 12-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
• USB-A ports support up to 5Gbps transfer rate following USB 3.2 Gen 1 specification
• Dual HDMI plus VGA, triple video outputs with MST Support
• Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
• Support Mirror or Extended mode (maximum 2 extended mode displays)
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2 Slot Card reader for SD and microSD memory cards
• USB-C PD port for charging the laptop with up to 100W of power
• 3.5mm audio jack for easy connection of headphones or speakers
• Durable & stylish aluminium alloy housing
• Lightweight, easy to carry along when travelling
• Plug & play, no driver software required

Description

CHN612 is a 12-in-1 USB-C multiport adapter with dual HDMI + VGA triple video outputs. It turns a single USB-C port into 12 ports, including 4 USB-A ports, 2 card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging. If you need to connect with various devices to your laptop at same time, CHN612 is a comprehensive connectivity solu­­­­­­­­­­tion that helps you do more with the devices you already have to increase productivity and convenience. 12-in-1 Massive USB-C Docking Station A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 4 port USB hub (3x SuperSpeed 5Gbps USB ports and 1x HiSpeed 480Mbps USB port) Triple Video Outputs with MST Support This multiport adapter offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor (Please note MST is for Windows system only, MacOS doesn't support MST) SuperSpeed USB Hub with SD/MicroSD Card Reader 3x USB-A port with a maximum transfer speed up to 5Gbps. It allows you to connect USB Storage Drive, keyboard, mouse, thumb drive or other USB devices. 100W USB-C Power Delivery The USB-C PD Port can charge your connected device while other ports are working. The USB-C port supports PD2.0 and up to 100W Power Delivery charging. Gigabit Ethernet Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading. Stylish and Durable Aluminium Alloy Casing This USB-C multiport adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. Its compact design makes it perfect for travelling.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 2.0 ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
USB Power Delivery	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Plug and Play	Yes
LED indicators	Power
Housing material	Aluminium
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, VGA
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	55 mm
Depth	120 mm
Height	16 mm
Weight	100 g
Design
Product colour	Black
LED indicators	Power
Other features
Cable length	0.15 m
