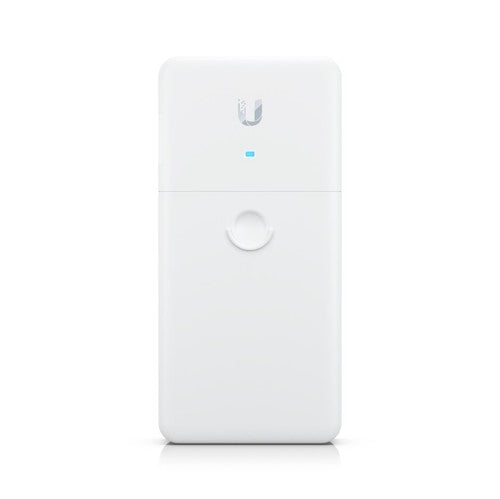

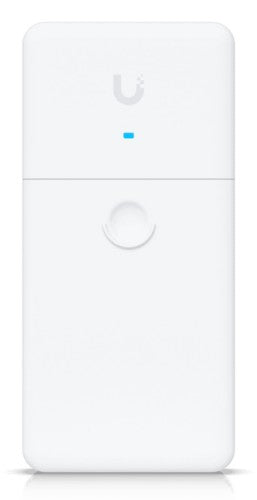

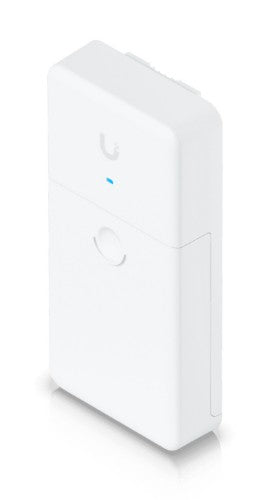

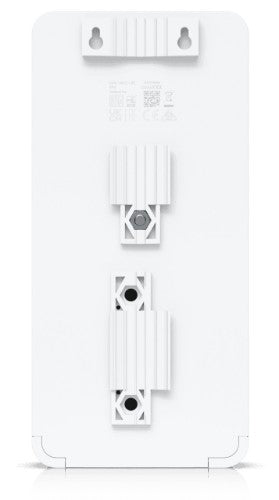

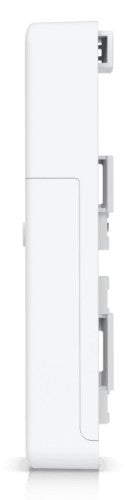

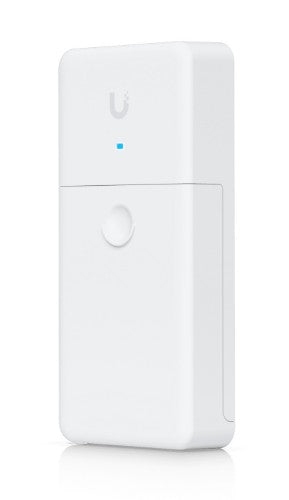

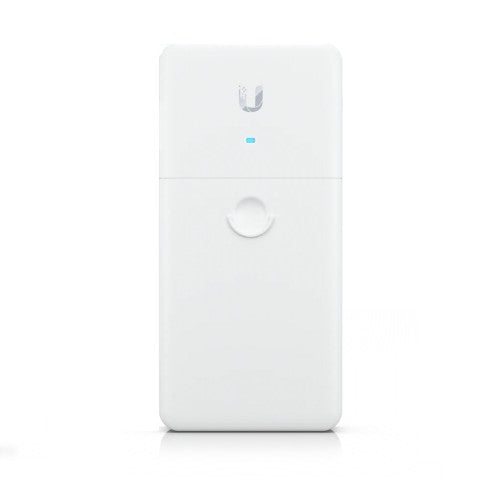

Ubiquiti UACC-LRE bridge/repeater Network repeater

RJ45 x 2, IPX5, 802.3af/at PoE/PoE+

Key Features

• Establishes long-range connections between PoE switches and devices
• Chains with other UACC LRE units

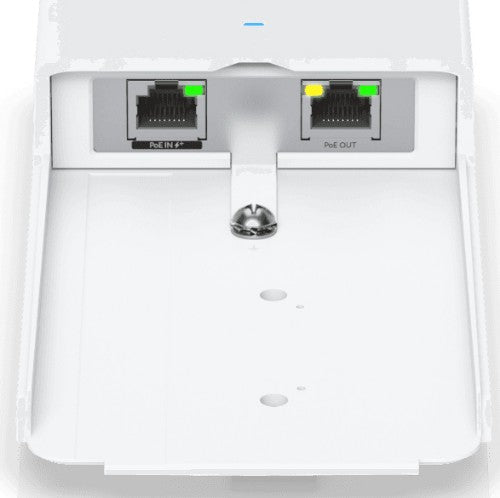

• (1) GbE RJ45 port for 802.3af/at PoE/PoE+ input
• (1) GbE RJ45 port for passthrough PoE output
• 10kA+ surge protection
• Works reliably in extreme temperatures (-40 to 80° C)

Description

Long-range Gigabit Ethernet adapter that receives 802.3af/at PoE/PoE+ and offers passthrough PoE output.

The Long-range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive 802.3af/at PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage.

Specifications

Antenna
Antenna design	Internal
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes
Ports & interfaces
Ethernet LAN	Yes
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	2
Features
Product type	Network repeater
International Protection (IP) code	IPX5
Material	Polycarbonate (PC)
LED indicators	Yes
Power
Power consumption (max)	1.5 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 95%
Management features
LED indicators	Yes
Certificates
Certification	CE, FCC, IC
Technical details
Material	Polycarbonate (PC)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Weight & dimensions
Weight	350 g
Width	93.5 mm
Depth	39 mm
Height	196.5 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	85176990
