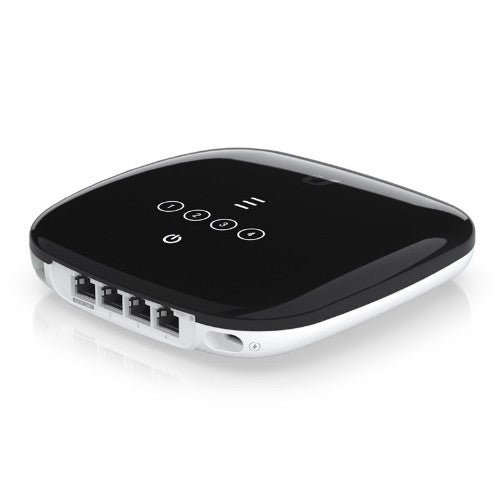

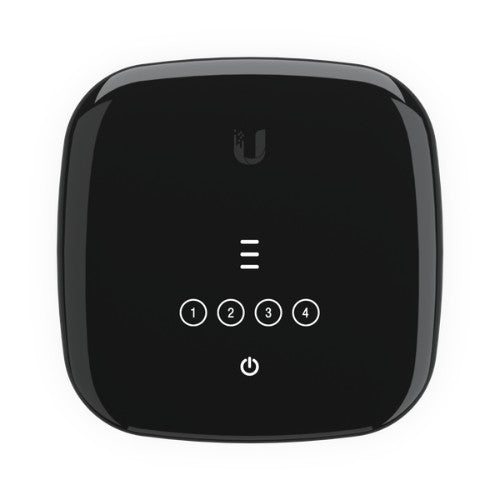

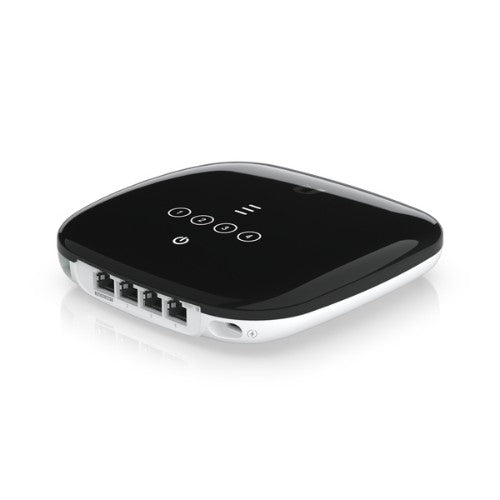

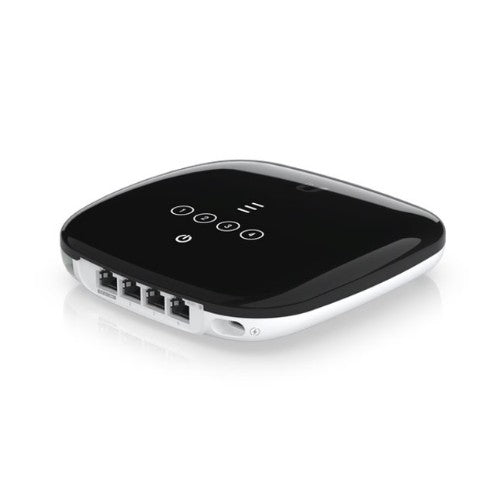

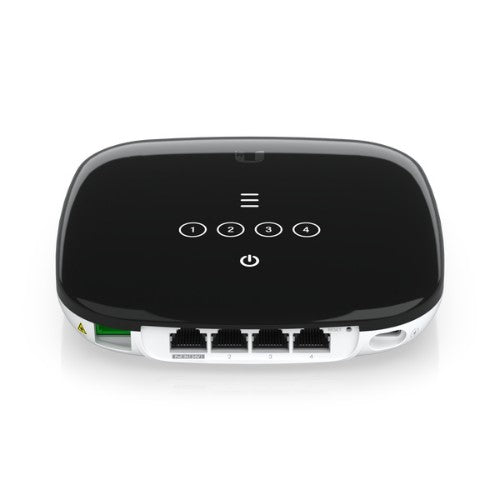

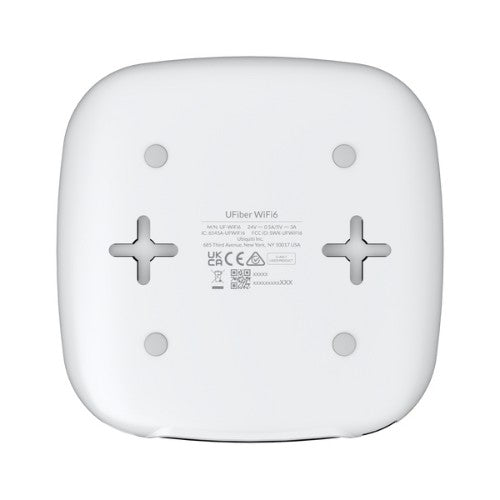

Ubiquiti UFiber WiFi6 GPON CPE Optical network unit (ONU)

GPON, Wi-Fi 6, 4x RJ-45, SC/APC, PoE, 2.488 Gbps downstream, 1.244 Gbps upstream

Key Features

• 2x2, high-efficiency WiFi 6
• 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
• 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
• 2.4 Gbps max downstream line rate
• 1.2 Gbps max upstream line rate
• Establishes GPON links up to 20 km
• Powerful Layer 2/3 management features

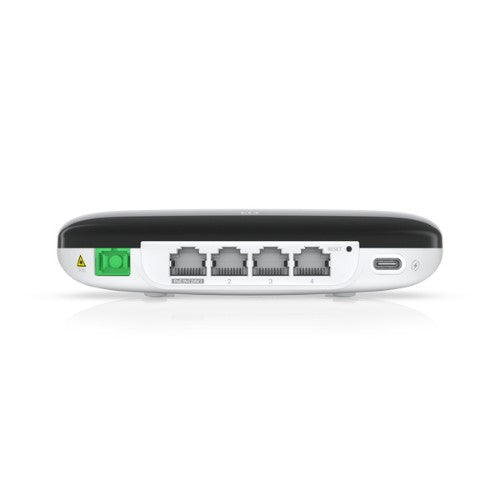

• (1) GPON WAN port
• (4) GbE RJ45 LAN ports
• Powered with the included power adapter or passive PoE
• Internal WiFi 6 (802.11ax) antennas

Description

High-performance WiFi 6 GPON CPE.
The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.

Specifications

Design
Product type	Optical network unit (ONU)
Product colour	Black
LED indicators	LAN, Power
Network
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
ITU standards	G.984
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Switch layer	L2+/L3
Upstream data rate	2488 Mbit/s
Downstream data rate	1244 Mbit/s
Transmission distance (max)	20 km
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1490 nm
VLAN support	Yes
Wireless LAN features
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	Internal
Antenna gain level (max)	3 dBi
Management features
Reset button	Yes
Security
Security algorithms	AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Fiber ports quantity	1
Fiber optic connector	SC
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
USB ports quantity	1
Power
Output voltage	5 V
Output current	3 A
Power consumption (max)	11 W
Certificates
Compliance certificates	CE
Operational conditions
Operating temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	141.5 mm
Depth	140.8 mm
Height	31.6 mm
Weight	415 g
Packaging content
AC adapter included	Yes
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	CE
Logistics data
Quantity per pack	1 pc(s)
