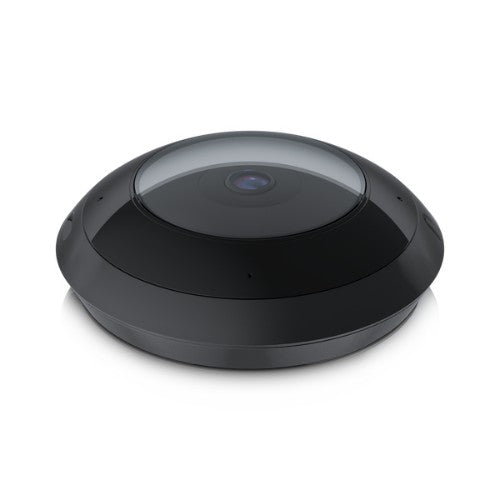

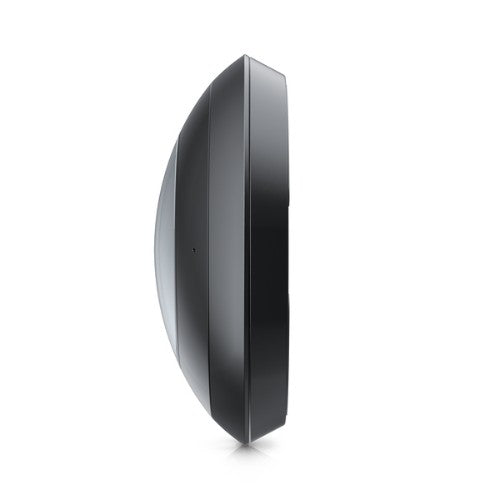

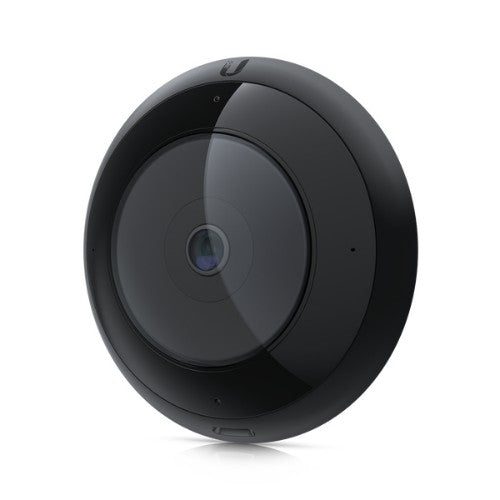

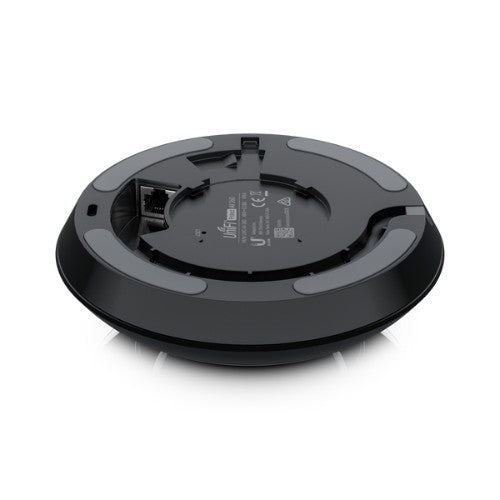

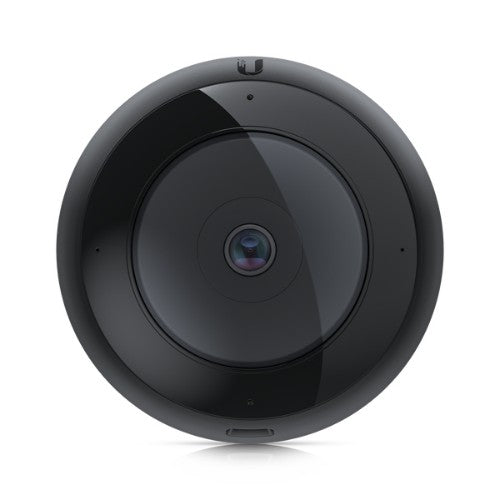

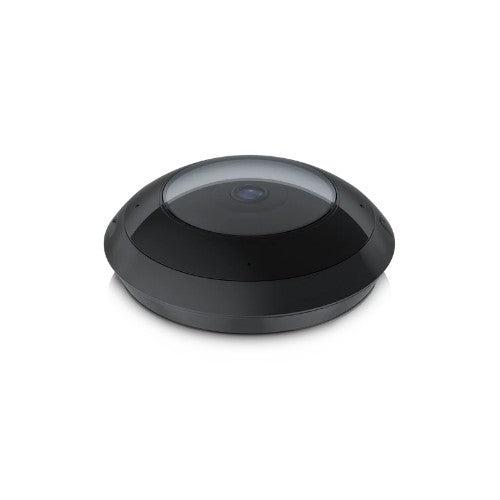

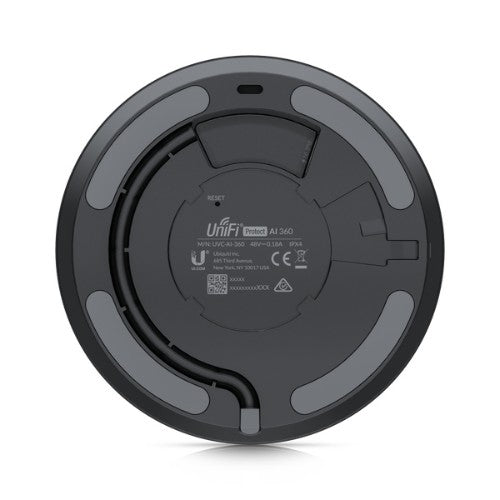

Ubiquiti Networks AI 360 Dome IP security camera Indoor & outdoor 1920 x 1920 pixels Ceiling

360° fisheye lens, 5 MP CMOS sensor, 1920 x 1920, 30 fps, IPX4/IK08

Key Features

• Captures 1920x1920, 30 FPS video
• 5 MP CMOS sensor
• Ultra-wide, 360° fisheye lens
• IPX4-rated, weatherproof housing
• IK08-rated tamper resistance
• Built-in IR LEDs for clear nighttime surveillance
• Powered by 802.3af PoE

Description

High-resolution pan-tilt-zoom camera with a 360° fisheye lens and built-in IR LEDs for panoramic, around-the-clock surveillance. The Camera AI 360 (AI 360) is a pan-tilt-zoom (PTZ) camera that provides panoramic, overhead surveillance of heavily populated indoor and outdoor areas. The AI 360 streams sharp 1920x1920 video at a smooth 30 frames per second (FPS), and its built-in IR LEDs ensure that every frame is crystal clear—day or night. Equipped with a 5 MP CMOS sensor and an ultra-wide, 360° fisheye lens, the AI 360 can quickly detect finite details within its expansive coverage area and capture them with pristine clarity. It's also protected with rugged, weather and tamper-resistant housing, making it an ideal choice for shopping centers, parking lots, airports, train stations, and other transportation hubs. The AI 360 is a sophisticated, feature-rich camera, but it's also designed to be incredibly easy to set up and incorporate into existing Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Certification	FCC, IC, CE
Built-in processor	Yes
Design
Weatherproof	Yes
IK code	IK08
Form factor	Dome
Product colour	Black
Mounting type	Ceiling
Protection features	Vandal proof
LED indicators	Activity, Link
International Protection (IP) code	IPX4
Housing material	Aluminium, Polycarbonate (PC), Stainless steel
Camera
Field of view (FOV) angle	360°
Image sensor
Sensor type	CMOS
Lens system
Number of lenses	1
Night vision
Night vision	Yes
LED type	IR
Video
Maximum resolution	1920 x 1920 pixels
Video compression formats	H.264, M-JPEG
Frame rate	30 fps
Total megapixels	5 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Network
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Wi-Fi	No
Live view	Yes
Storage
Flash memory	8000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Management features
Web-based management	Yes
Reset button	Yes
Smartphone remote support	Yes
Power
Power source type	DC, PoE
Power consumption (max)	8.64 W
DC output voltage	48
Certificates
Certification	FCC, IC, CE
Operational conditions
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Height	49 mm
Diameter	14.7 cm
Weight	655 g
Packaging content
Number of cameras	1
Manual	Yes
Other features
Video compression formats	H.264, M-JPEG
