Simplecom SA506 interface cards/adapter M.2

NVMe / SATA Dual Protocol M.2 SSD to USB-C Adapter Converter USB 3.2 Gen 2 10Gbps

Key Features

• Dual Protocol support for both NVMe and SATA M.2 SSD
• Convert M.2 SSD (M Key or B+M Key) to USB-C
• USB 3.2 Gen 2 interface up to 10Gbps transfer rate
• Cable style adapter for easy swap and access of multiple M.2 SSDs
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no driver required
• LED indicator for power and activity status

Description

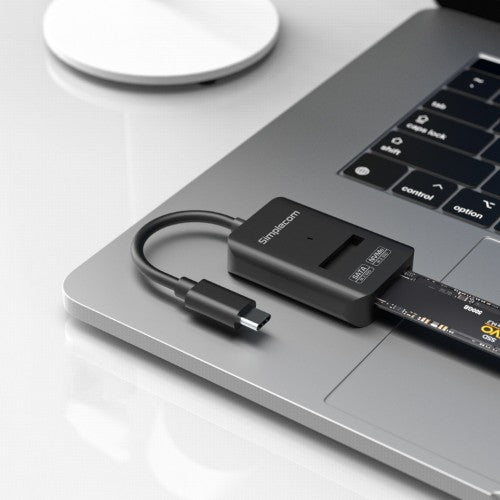

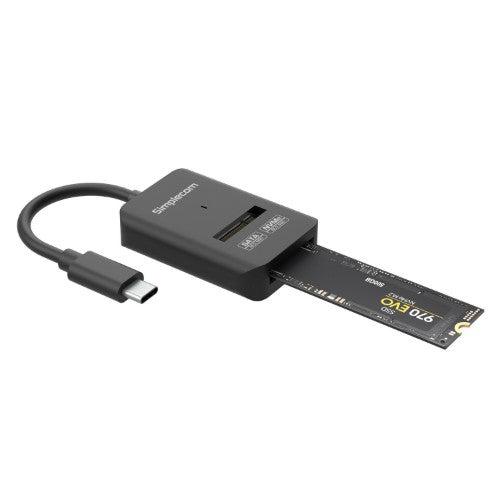

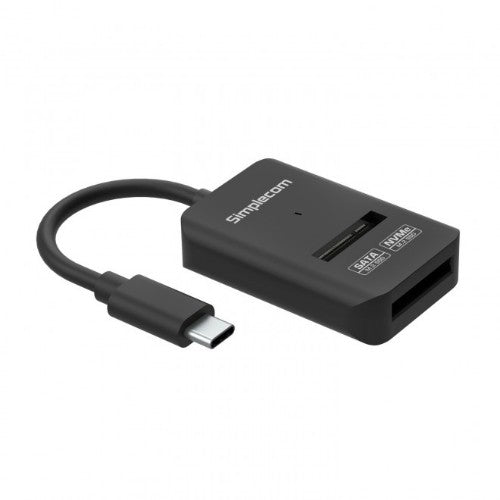

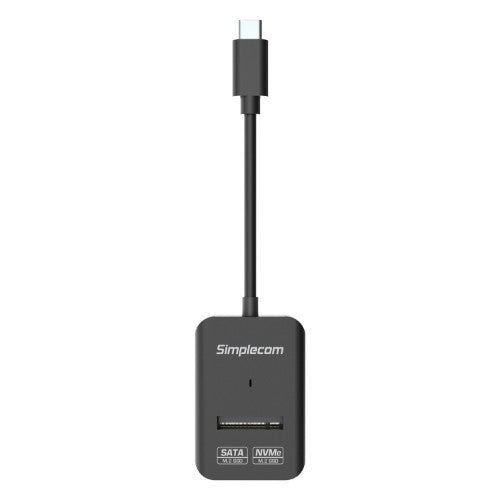

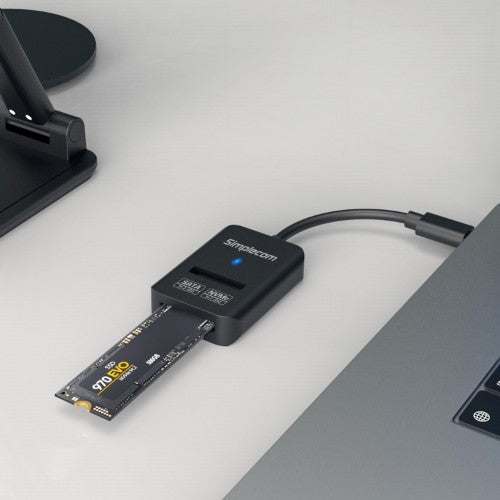

SA506 is a M.2 SSD to USB-C adapter that supports both NVMe and SATA protocol based M.2 SSDs. No need to worry about which type of M.2 SSD you have, this adapter converts both SATA and NVMe M.2 SSD to USB-C for easy access on your computer. This adapter is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It’s an ideal solution for for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adapter makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.

Specifications

Ports & interfaces
Internal	No
Host interface	USB Type-C
Output interface	M.2
Number of M.2 (M) slots	1
NVMe	Yes
Host interface gender	Male
Performance
Plug and Play	Yes
Data transfer rate (max)	10 Gbit/s
Product colour	Black
NVMe	Yes
TRIM support	Yes
Design
Easy to install	Yes
Internal	No
Product colour	Black
Features
Plug and Play	Yes
Data transfer rate (max)	10 Gbit/s
TRIM support	Yes
Connector 1 form factor	Straight
NVMe	Yes
Power
USB powered	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Technical details
Quantity per pack	1 pc(s)
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Weight & dimensions
Width	37 mm
Depth	158 mm
Height	12 mm
Packaging data
Manual	Yes
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
