ATEN 2-Port USB FHD HDMI Cable KVM Switch

2-Port USB FHD HDMI Cable KVM Switch

Key Features

• One KVM console controls two computers with USB and HDMI interface
• Superior video quality & up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz
• Computer selection via Remote Port Selector
• HDMI compliant; HDCP 1.4 compliant
• Multiplatform support – Windows, Mac, and Linux

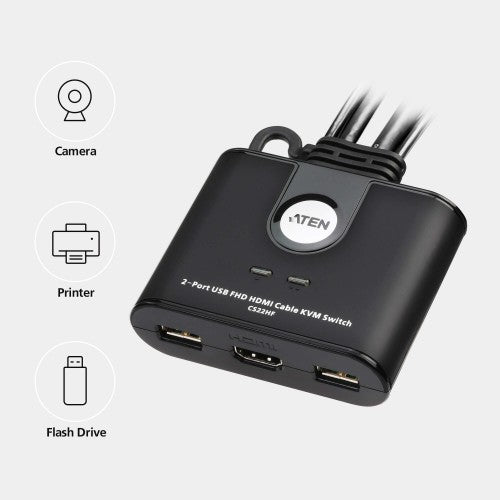

• The console USB ports can be used for USB peripheral sharing
• Supports USB hot-plugging
• Bus-powered

Description

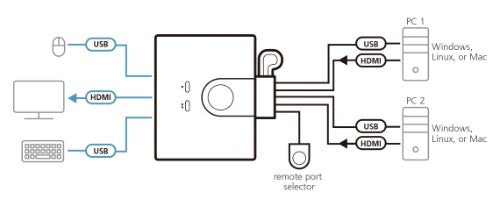

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.

Specifications

Ports & interfaces
Console ports	HDMI, USB A
USB connector type	USB Type-A
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	1
DC-in jack	Yes
Cable length	1.2 m
HDCP	Yes
Performance
HDCP	Yes
HD type	Full HD
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Cable length	1.2 m
Design
Remote switch cable length	1.8 m
Product colour	Black
Cable length	1.2 m
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Country of origin	Taiwan
Display
Built-in display	No
Power
Power consumption (typical)	1.518 W
Input voltage	5 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	Full HD
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Features
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	66.5 mm
Depth	82.4 mm
Height	25.2 mm
Weight	260 g
Package volume	1982.18 cm³
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	360 g
Packaging data
Package type	Box
Package volume	1982.18 cm³
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	360 g
Packaging content
Packaging content	1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
Package type	Box
Logistics data
Country of origin	Taiwan
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	7.9 kg
Products per master (outer) case	20 pc(s)
Master (outer) case volume	42192.1 cm³
Harmonized System (HS) code	85176200
